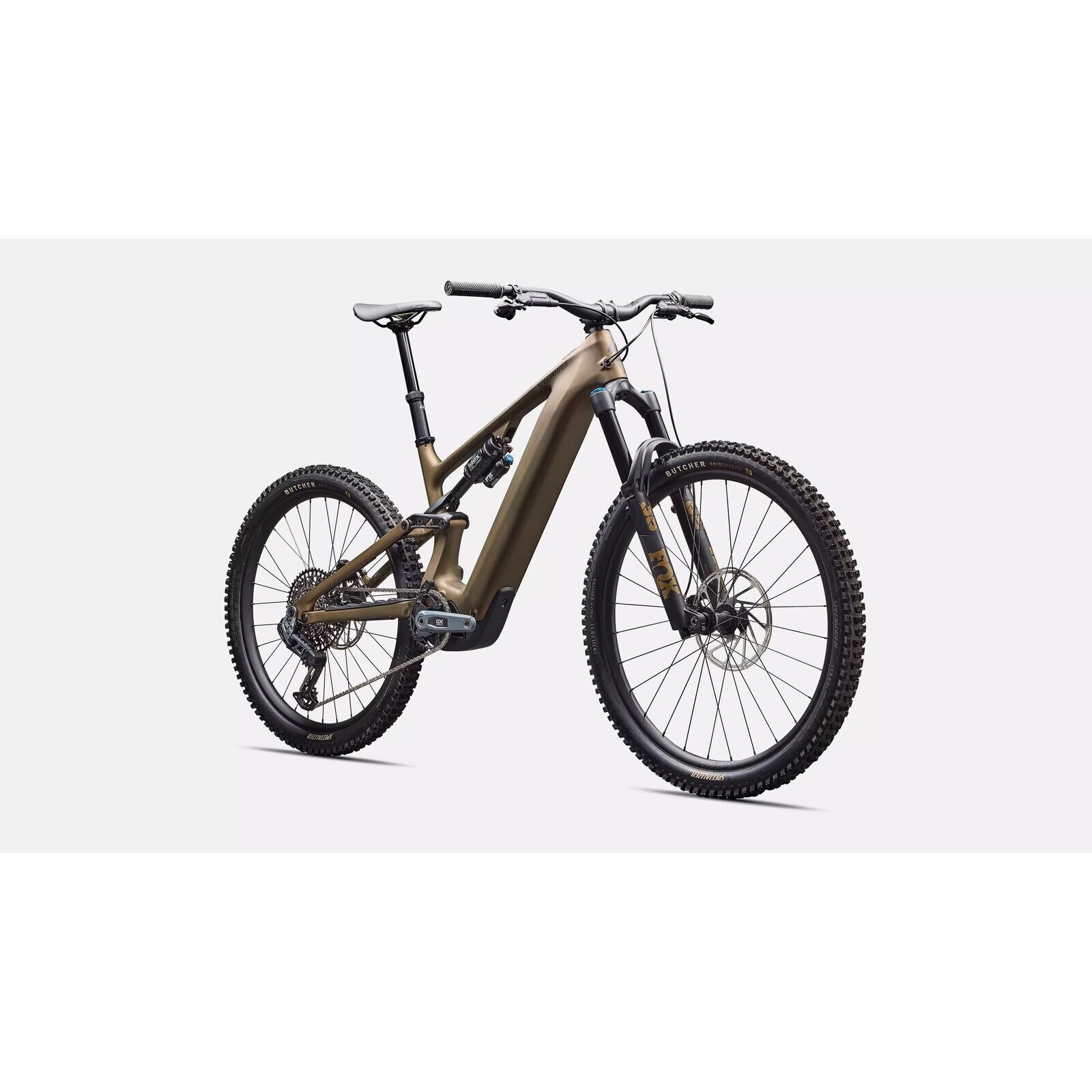

SPECIALIZED Turbo Levo 4 Expert
Termék információ
E-Bike
Motor

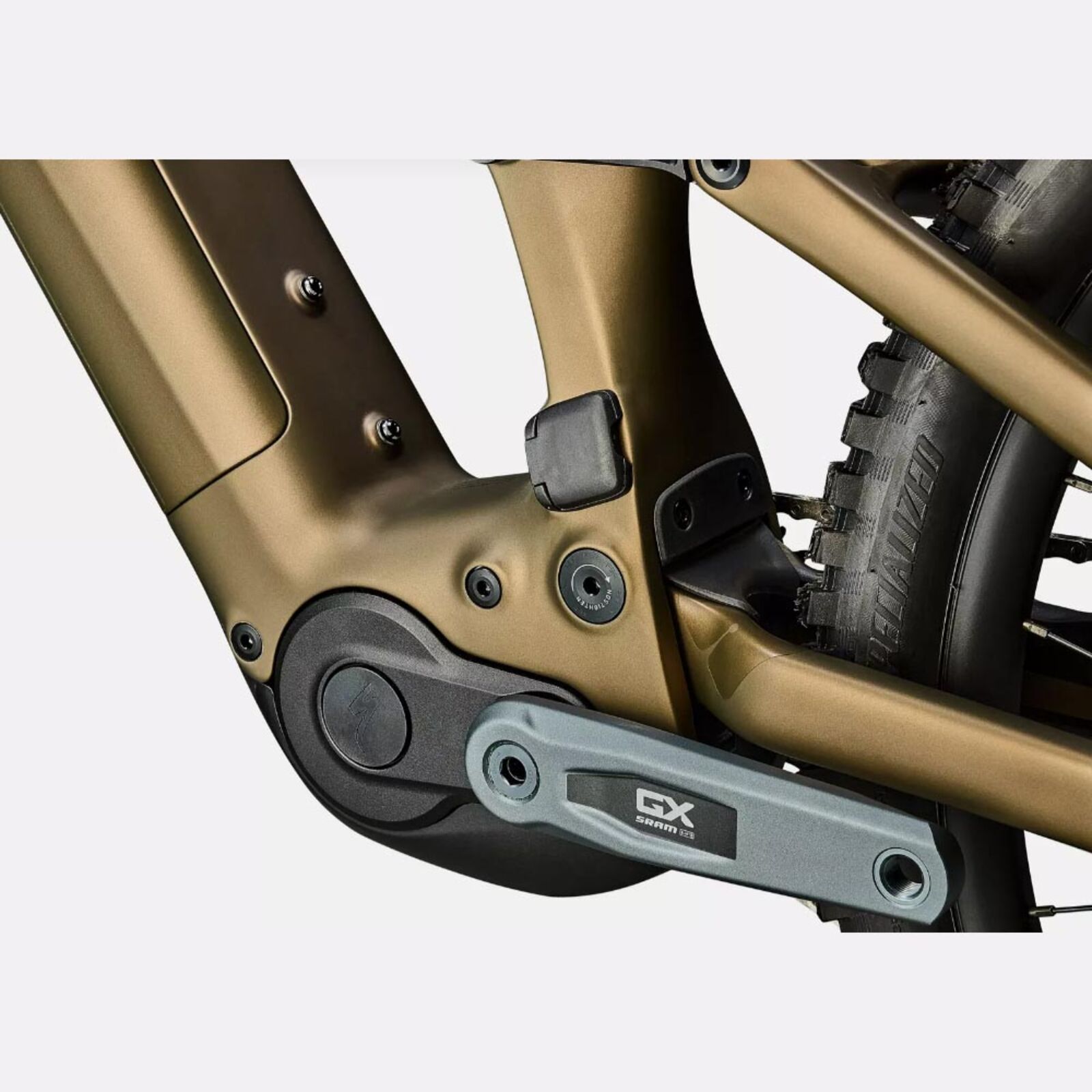

All New Specialized 3.1 Motor, 101Nm torque, 666W power
Battery
840wh battery
UI/Remote

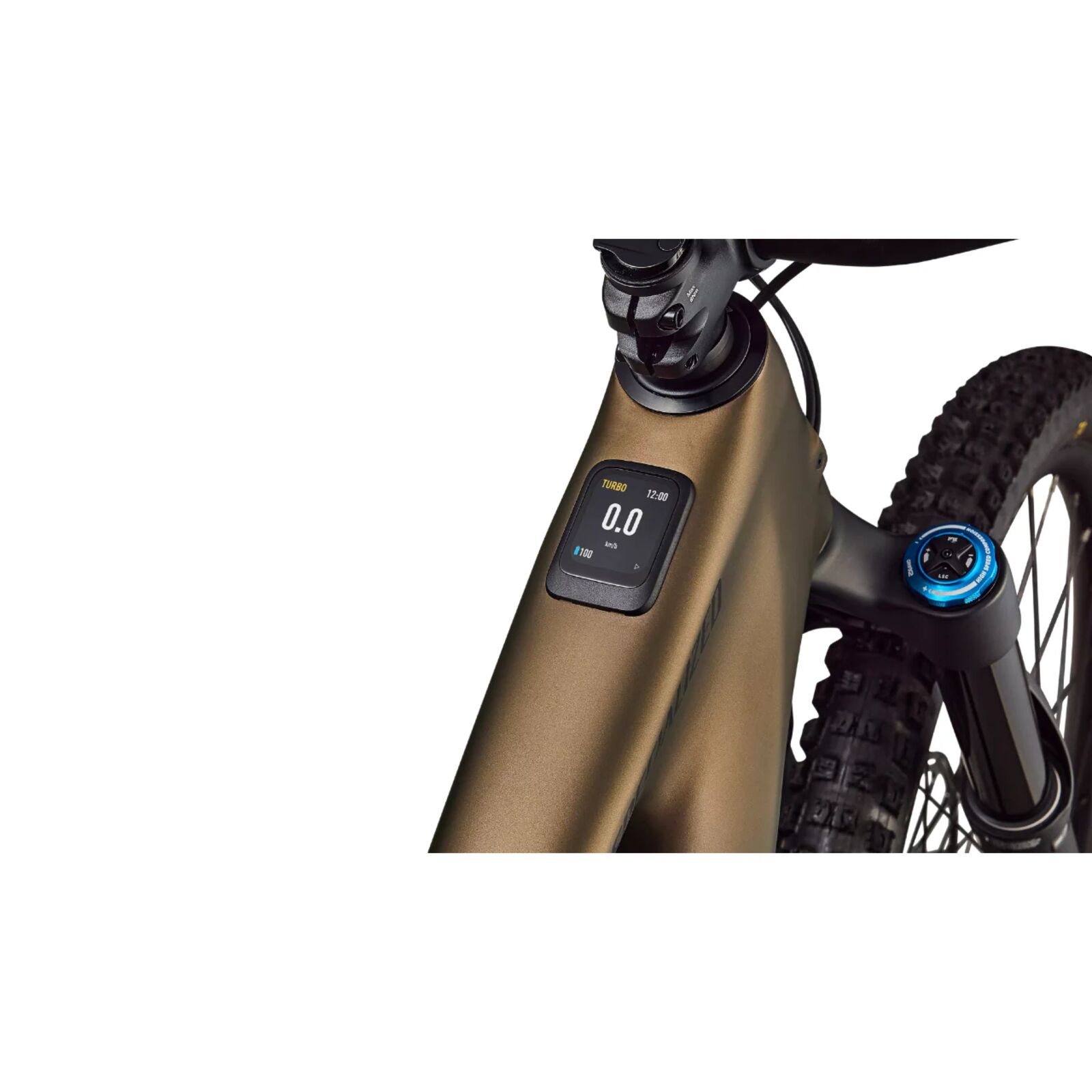

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 4amp charger
Frameset
Frame
All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock

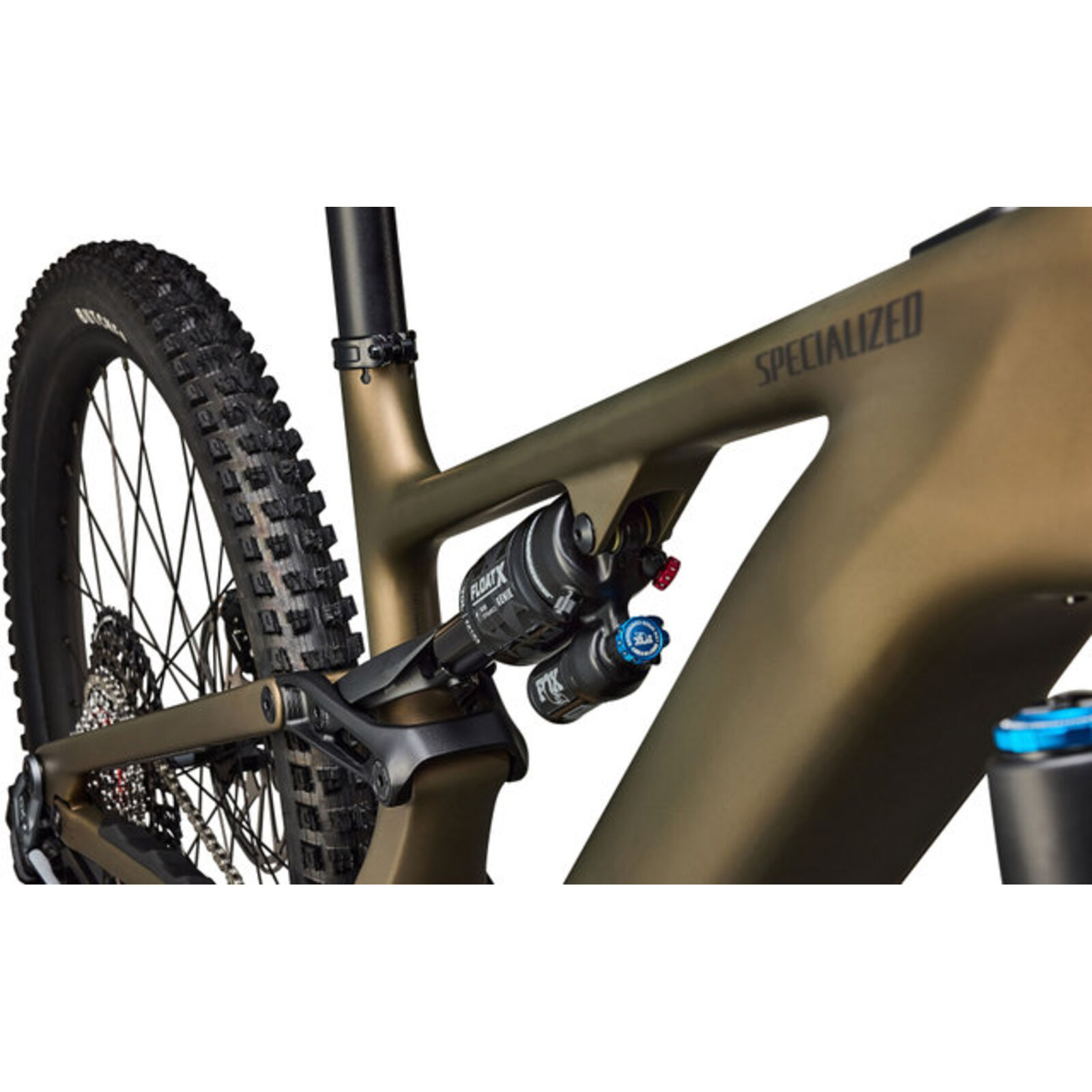

FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment
Fork
Fox 38 Performance Elite series, 29", Grip X2 damper,15x110mm axle, 44mm offset, 160mm of travel
Brakes
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM GX Eagle Transmission Flattop Chain
Crankset
SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Front Wheel
Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Rear Wheel
Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
Inner Tubes
Standard, Presta valve
Cockpit
Stem

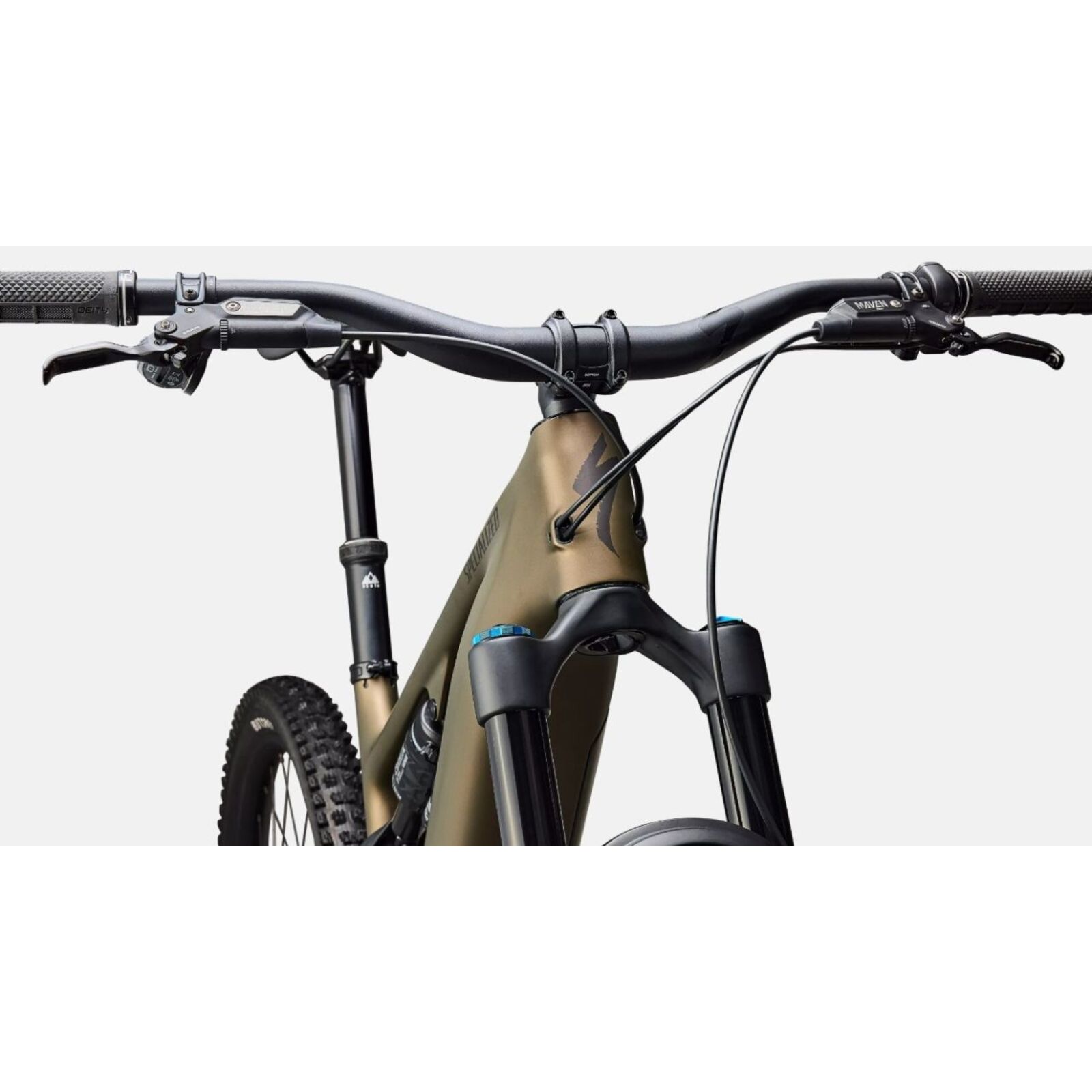

Alloy Trail Stem, 35mm bar bore
Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise 780mm width, S3-S5: 40mm rise, 800mm width
Grips
Deity Lockjaw grips
Saddle
Bridge Comp, Hollow Cr-mo rails
SeatPost
PNW Loam post w/travel adjust S2: 150mm, S3: 170mm, S4/S5/S6: 200mm
Accessories
SWAT
SWAT internal downtube storage
Product Details
Product ID
218705
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
24.41 kg (53 lb, 13.0 oz)
Weight Size
S4
